Overview

This vignette introduces the core STID object classes and helper functions used by STID workflows. The STID class extends a Seurat object with an additional STID_analysis slot, so users can keep regular Seurat assays, metadata, reductions, graphs, and images while recording infection-specific project information, metadata records, single-sample niche results, and multi-sample niche results.

This vignette covers:

  • the relationship among STID, STID_analysis, SingleSampNiche, and MultiSampNiche;
  • converting a Seurat object into an STID object;
  • reading and updating project information stored in STID_info;
  • adding, retrieving, and removing metadata records;
  • creating and inspecting single-sample and multi-sample niche containers;
  • converting an STID object back to a standard Seurat object.

Note: Before running the examples, update the input Seurat object, sample column, sample-group column, cell-type column, coordinate columns, pathogen-gene names, spatial platform, and metadata keys to match the dataset under analysis.

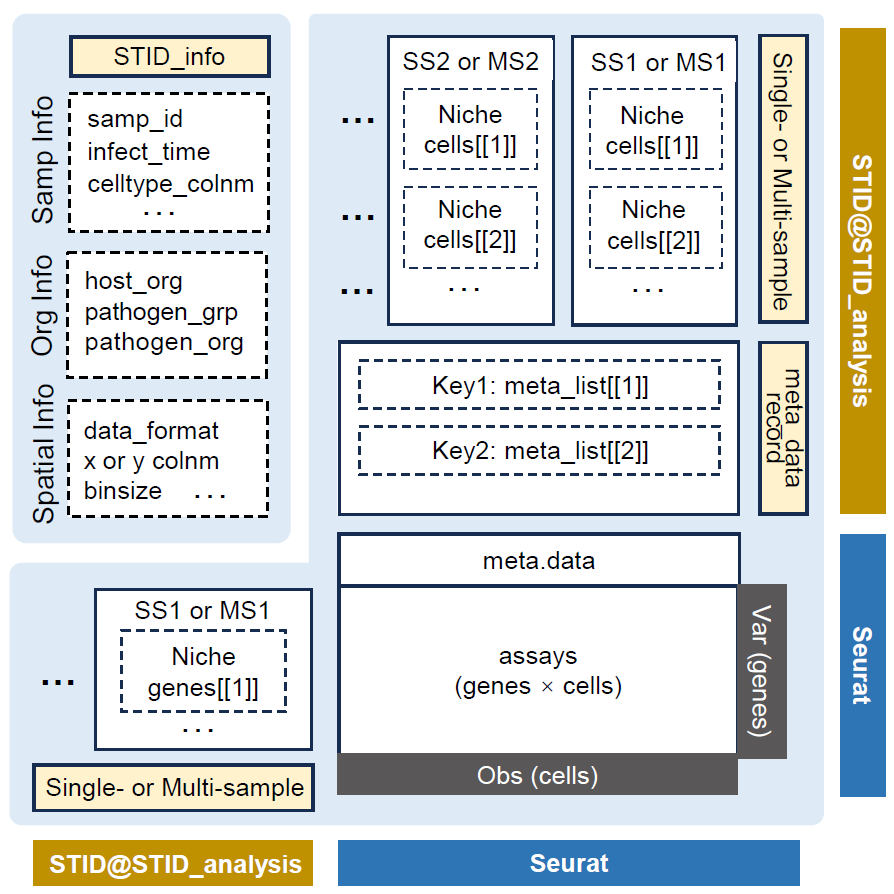

STID class data structure

STID class data structure

Prerequisites

Most examples below use eval = FALSE because they demonstrate object manipulation patterns. Replace placeholder object names and column names with those used in the active project.

Class architecture

STID is an S4 class that contains Seurat. In practice, this means an STID object can be used like a Seurat object in many common analysis steps, while also carrying the additional STID_analysis container used by STID-specific workflows.

Class Main role Key slots
STID Seurat-derived object with infection-specific analysis storage STID_analysis, plus inherited Seurat slots such as assays, meta.data, reductions, images, graphs, and misc
STID_analysis Project-level analysis container STID_info, meta_data_record, SingleSampNiche, MultiSampNiche
SingleSampNiche Niche-analysis results for one sample samp_info, niche_info, niche_cells, niche_genes
MultiSampNiche Integrated niche-analysis results across samples samp_info, niche_info, niche_cells, niche_genes

The most important storage paths are shown below.

# Project, sample, data, and comment information
STID_obj@STID_analysis@STID_info

# Registered metadata tables and their provenance records
STID_obj@STID_analysis@meta_data_record

# Single-sample niche objects, usually named by sample ID
STID_obj@STID_analysis@SingleSampNiche

# Multi-sample niche objects, usually named by multi_id
STID_obj@STID_analysis@MultiSampNiche

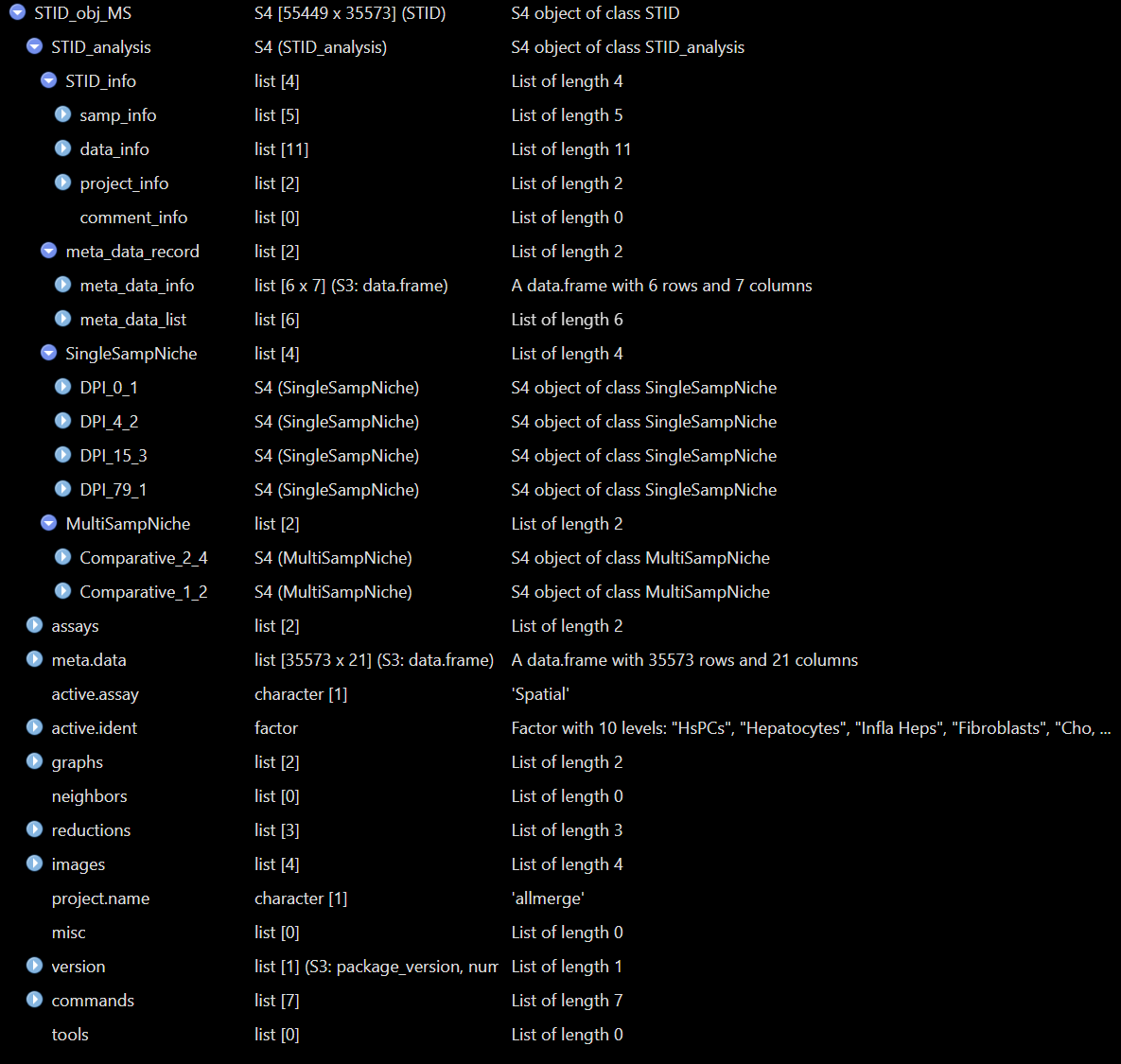

Structure of a real STID object - Comparative

Structure of a real STID object - Comparative

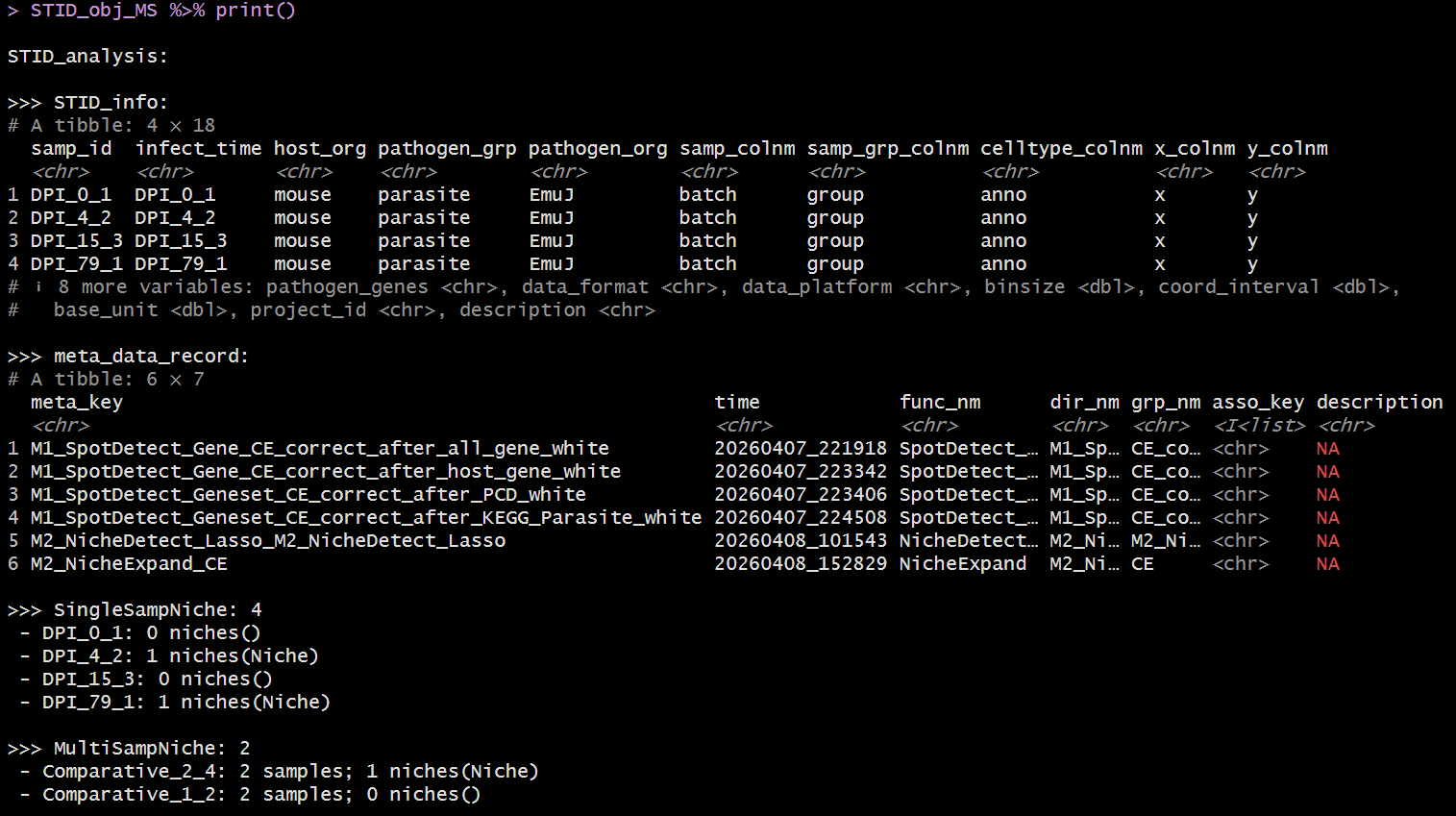

Example output of print(STID object) - Comparative

Example output of print(STID object) - Comparative

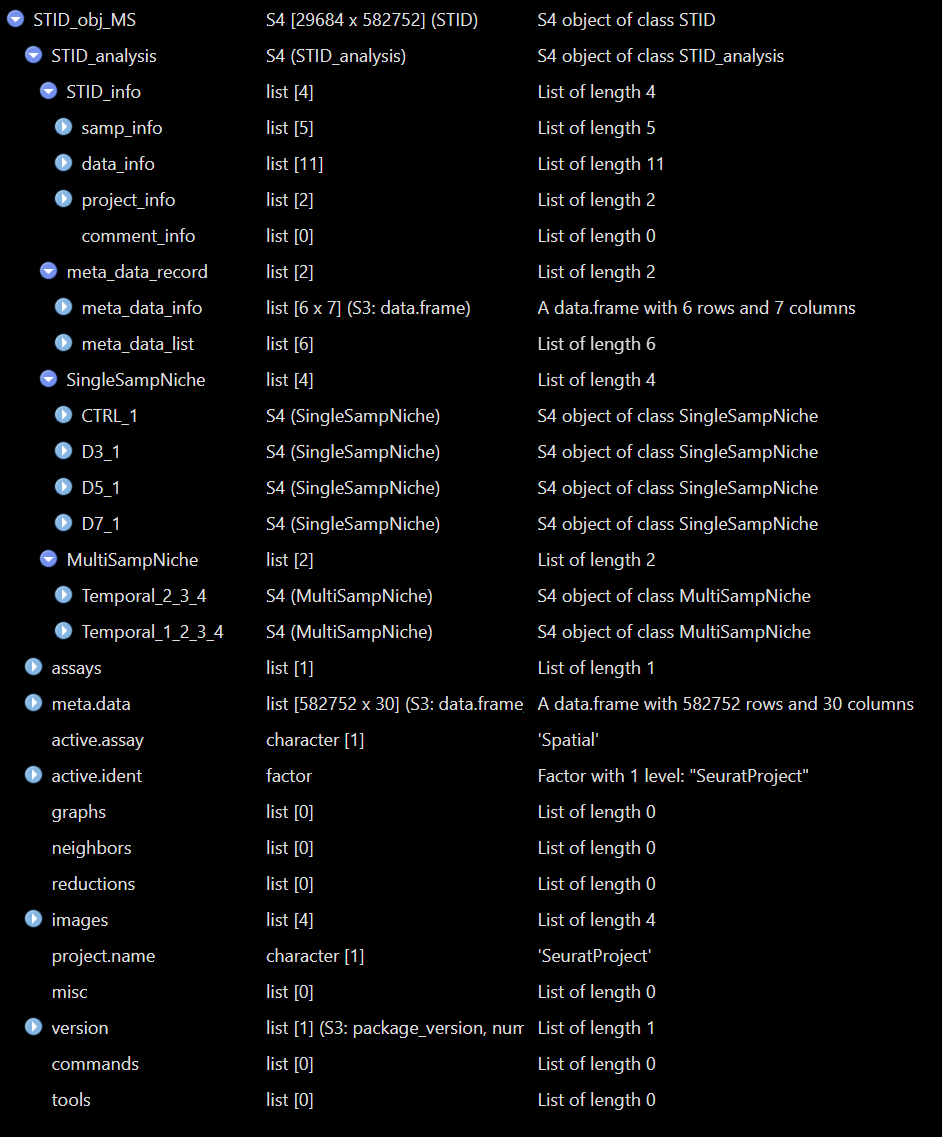

Structure of a real STID object - Temporal

Structure of a real STID object - Temporal

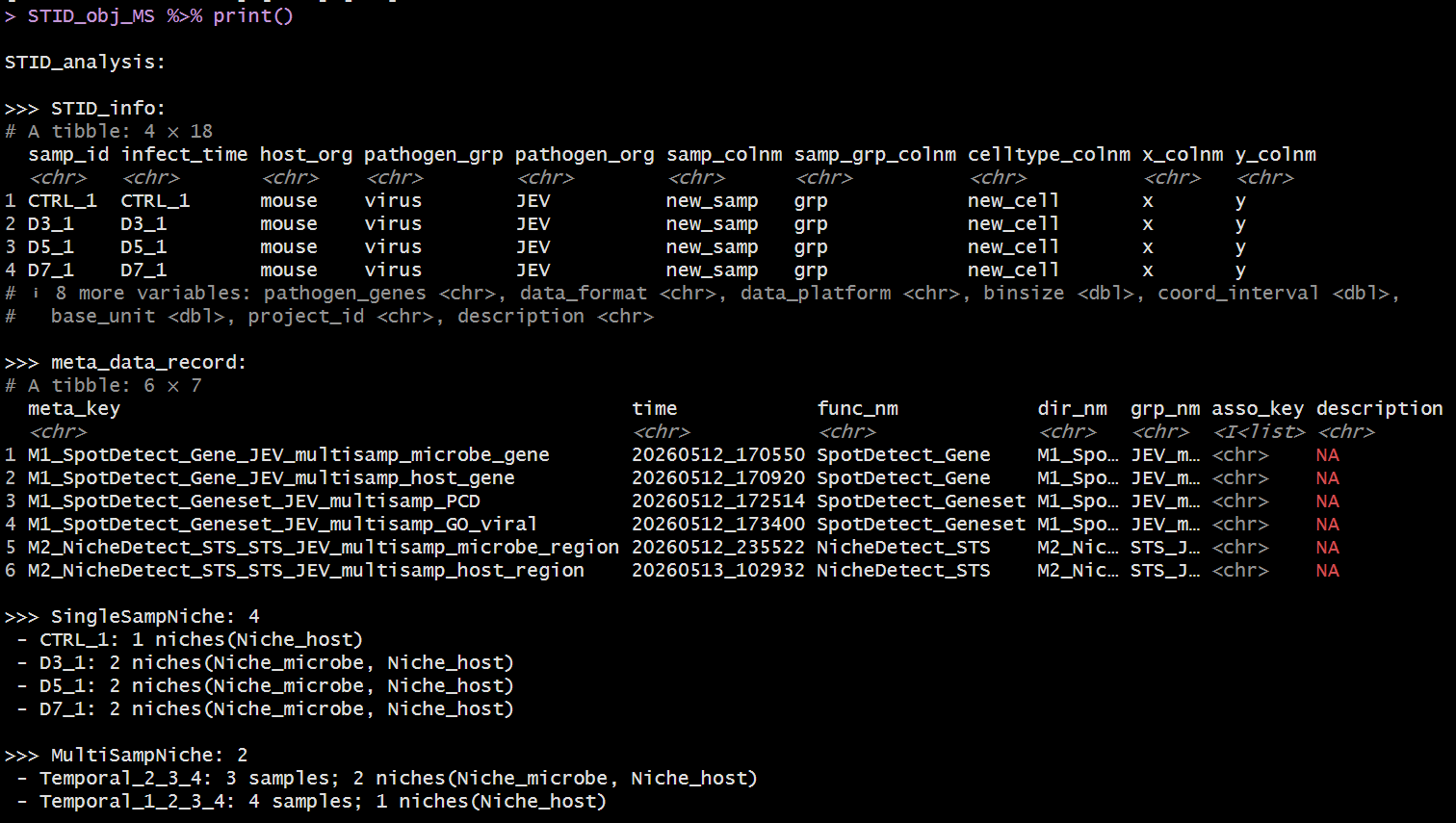

Example output of print(STID object) - Temporal

Example output of print(STID object) - Temporal

Note: Direct slot access is useful for inspection, but analysis scripts should prefer accessor and setter functions such as GetInfo(), SetInfo(), GetMetaData(), AddMetaData(), GetSSNicheCells(), and GetMSNicheCells().

Convert a Seurat object to an STID object

as.STID() converts a Seurat object into an STID object. The conversion stores infection-specific information, spatial-data information, and project information in STID_obj@STID_analysis@STID_info.

During conversion, as.STID() checks required metadata columns, standardizes coordinate columns to x and y, updates the Seurat object for compatibility, records sample order, initializes empty metadata and niche containers, and replaces underscores in gene names with hyphens.

Note: CreateSTIDObject() is a convenience wrapper. This vignette uses as.STID() directly because it exposes the full conversion interface, including data_platform and base_unit.

pathogen_genes <- grep("^Pathogen-", rownames(seurat_obj), value = TRUE)

STID_obj <- as.STID(
  seurat_obj = seurat_obj,
  host_org = "mouse",
  pathogen_grp = "parasite",
  pathogen_org = "Echinococcus_multilocularis",
  samp_colnm = "batch",
  samp_grp_colnm = "group",
  celltype_colnm = "anno",
  x_colnm = "x",
  y_colnm = "y",
  pathogen_genes = pathogen_genes,
  data_format = "square_grid",
  data_platform = "StereoSeq",
  binsize = 1,
  coord_interval = 1,
  base_unit = 0.5,
  project_id = "STID_demo",
  description = "Demo project converted from a Seurat object"
)

Coordinate handling

For square-grid data, the conversion checks the most common interval between unique x and y coordinates. If the intervals are consistent, coordinates are divided by the interval and rounded so the stored coordinate interval becomes 1. For Visium-style hex-grid data, coord_interval is calculated from the spatial scale factor and base_unit.

Note: If x and y already exist in meta.data, they are used directly. If they do not exist and x_colnm or y_colnm is missing, STID attempts to extract coordinates from the Seurat spatial image slots. If custom coordinate column names are provided, they are renamed to x and y inside the STID object.

GetCoordInfo(STID_obj)

STID_obj@meta.data %>%
  dplyr::select(batch, group, anno, x, y) %>%
  head()

Platform defaults

If base_unit is not supplied, as.STID() uses platform-specific defaults when available.

data_platform Default base_unit
StereoSeq 0.5
VisiumHD 2
SlideSeq 10
Visium 65
GetInfo(STID_obj, info_key = "samp_info")
GetInfo(STID_obj, info_key = "data_info")
GetInfo(STID_obj, info_key = "project_info")

Inspect and update STID information

GetInfo() retrieves one category from STID_info. Use sub_key to retrieve selected fields.

# Sample-level information
GetInfo(STID_obj, info_key = "samp_info")

# Selected data-structure information
GetInfo(
  STID_obj,
  info_key = "data_info",
  sub_key = c("samp_colnm", "samp_grp_colnm", "celltype_colnm", "data_platform")
)

# Project information
GetInfo(STID_obj, info_key = "project_info")

SetInfo() overwrites an existing information field. AddInfo() appends values, and is most useful for comment_info.

STID_obj <- SetInfo(
  STID_obj,
  info_key = "project_info",
  sub_key = "description",
  info_value = "Updated project description after preprocessing"
)

STID_obj <- AddInfo(
  STID_obj,
  info_key = "comment_info",
  sub_key = NULL,
  info_value = list(
    preprocessing = "Low-quality spots were removed before STID conversion.",
    coordinates = "Stereo-seq coordinates were normalized to interval 1."
  )
)

Manage metadata records

STID keeps two categories of metadata:

  • raw cell metadata in STID_obj@meta.data, inherited from Seurat;
  • analysis-specific metadata tables stored in STID_obj@STID_analysis@meta_data_record$meta_data_list, with a corresponding provenance table in meta_data_info.

GetMetaData() can retrieve the special keys "raw" and "coord", or retrieve registered metadata tables by their meta_key. It can also combine multiple metadata sources when meta_key is supplied as a list.

# Raw Seurat/STID metadata
raw_meta <- GetMetaData(STID_obj, meta_key = "raw")[[1]]

# Coordinate-related columns only
coord_meta <- GetMetaData(STID_obj, meta_key = "coord")[[1]]

# Combine raw metadata with a registered analysis metadata table
combined_meta <- GetMetaData(
  STID_obj,
  meta_key = list(c("raw", "infection_score")),
  add_coord = TRUE
)[[1]]

Add metadata

AddMetaData() registers a full metadata table. Row names of the added data frame should match the cell or spot names in STID_obj@meta.data.

infection_score <- STID_obj@meta.data %>%
  rownames_to_column(var = "cell_id") %>%
  mutate(
    pathogen_count = Matrix::colSums(GetAssayData(STID_obj, layer = "counts")[pathogen_genes, , drop = FALSE]),
    pathogen_positive = pathogen_count > 0
  ) %>%
  dplyr::select(cell_id, pathogen_count, pathogen_positive) %>%
  column_to_rownames(var = "cell_id")

STID_obj <- AddMetaData(
  STID_obj = STID_obj,
  meta_key = "infection_score",
  add_data = infection_score,
  dir_nm = "M0_Metadata",
  grp_nm = "infection_score",
  asso_key = "raw",
  description = "Per-cell pathogen count and binary pathogen-positive label"
)

GetMetaInfo(STID_obj)

Add or remove metadata columns

Use AddMetaColumn() when the goal is to append columns to an existing metadata table. Use RemoveMetaColumn() to remove selected columns, and RemoveMetaData() to unregister an entire metadata table.

new_columns <- data.frame(
  manual_qc_label = "pass",
  row.names = rownames(STID_obj@meta.data)
)

STID_obj <- AddMetaColumn(
  STID_obj = STID_obj,
  meta_key = "raw",
  add_data = new_columns
)

STID_obj <- RemoveMetaColumn(
  STID_obj = STID_obj,
  meta_key = "raw",
  remove_colnm = "manual_qc_label"
)

STID_obj <- RemoveMetaData(
  STID_obj = STID_obj,
  meta_key = "infection_score"
)

Create a SingleSampNiche object

CreateSingleSampNiche() converts niche-detection metadata into one SingleSampNiche object per sample. Each sample-level object stores niche_info, niche_cells, and niche_genes for one or more niche_key values.

For ROI_type = "ROI" or ROI_type = "Spot", center, edge, all-region label, and distance-to-center columns should be supplied. Additional metadata columns can be added to niche_cells by using other_colnm during construction or AddSSNicheCells() after construction.

Note: Update expanded_niche_key, ROI columns, negative label, sample IDs, and annotation columns according to the output of the infection-associated niche-identification workflow.

niche_key <- "Niche"
expanded_niche_key <- "M2_NicheExpand_CE"

STID_obj_SS <- CreateSingleSampNiche(
  STID_obj = STID_obj,
  loop_id = "LoopAllSamp",
  niche_key = niche_key,
  meta_key = expanded_niche_key,
  ROI_type = "ROI",
  pos_colnm = "ROI_label",
  neg_value = "neg",
  center_colnm = "ROI_center",
  edge_colnm = "ROI_edge",
  all_label_colnm = "All_ROI_label",
  all_dist_colnm = "All_Dist2ROIcenter",
  other_colnm = c("anno"),
  description = "Expanded infection-associated niche regions"
)

Retrieve single-sample niche data

The single-sample getter functions return lists named by sample ID.

ss_info <- GetSSNicheInfo(
  STID_obj = STID_obj_SS,
  loop_id = "LoopAllSamp",
  niche_key = niche_key
)

ss_cells <- GetSSNicheCells(
  STID_obj = STID_obj_SS,
  loop_id = "LoopAllSamp",
  niche_key = niche_key
)

ss_genes <- GetSSNicheGenes(
  STID_obj = STID_obj_SS,
  loop_id = "LoopAllSamp",
  niche_key = niche_key
)

Add annotations to single-sample niche data

AddSSNicheCells() appends selected metadata columns to niche_cells. AddSSNicheGenes() appends a gene-level annotation column to niche_genes.

STID_obj_SS <- AddSSNicheCells(
  STID_obj = STID_obj_SS,
  loop_id = "LoopAllSamp",
  meta_key = "raw",
  select_colnm = c("anno", "group"),
  niche_key = niche_key
)

STID_obj_SS <- AddSSNicheGenes(
  STID_obj = STID_obj_SS,
  gene = pathogen_genes,
  label = rep("pathogen_gene", length(pathogen_genes)),
  add_colnm = "gene_source",
  loop_id = "LoopAllSamp",
  niche_key = niche_key
)

Create a MultiSampNiche object

CreateMultiSampNiche() combines a shared niche_key across selected samples. It requires existing SingleSampNiche entries and uses the sample-group column recorded in data_info.

compare_mode can be:

  • "Comparative": designed for two-group comparisons; the first group order is treated as the control group in downstream comparative workflows;
  • "Temporal": designed for ordered multi-time or multi-stage samples.
STID_obj_MS <- CreateMultiSampNiche(
  STID_obj = STID_obj_SS,
  multi_id = "infected_vs_control",
  loop_id = c("Control_1", "Control_2", "DPI_4_1", "DPI_4_2"),
  compare_mode = "Comparative",
  niche_key = niche_key,
  description = "Compare infection-associated niches between control and infected samples"
)

Retrieve multi-sample niche data

The multi-sample getter functions return lists named by multi_id.

ms_info <- GetMSNicheInfo(
  STID_obj = STID_obj_MS,
  loop_id = "LoopAllMulti",
  niche_key = niche_key
)

ms_cells <- GetMSNicheCells(
  STID_obj = STID_obj_MS,
  loop_id = "LoopAllMulti",
  niche_key = niche_key
)

ms_genes <- GetMSNicheGenes(
  STID_obj = STID_obj_MS,
  loop_id = "LoopAllMulti",
  niche_key = niche_key
)

Add annotations to multi-sample niche cells

AddMSNicheCells() appends selected metadata columns to each multi-sample niche_cells table.

STID_obj_MS <- AddMSNicheCells(
  STID_obj = STID_obj_MS,
  loop_id = "LoopAllMulti",
  meta_key = "raw",
  select_colnm = c("anno", "group"),
  niche_key = niche_key
)

Convert STID back to Seurat

as.Seurat.STID() removes the STID-specific STID_analysis slot and returns a standard Seurat object containing the inherited Seurat components.

seurat_from_stid <- as.Seurat.STID(STID_obj_MS)

Inspect object summaries

The show method displays the regular Seurat summary followed by STID-specific information such as sample IDs, coordinate columns, metadata keys, and the number of single-sample and multi-sample niche containers. The print() method provides a more detailed STID-specific summary.

STID_obj_MS
print(STID_obj_MS)

A typical analysis keeps separate object names for each major stage, which makes it easier to reproduce earlier steps or compare alternative parameters.

# 1. Convert from Seurat
STID_obj <- as.STID(seurat_obj = seurat_obj, ...)

# 2. Add metadata produced by spot detection, niche detection, or manual annotation
STID_obj <- AddMetaData(STID_obj, meta_key = "infection_score", add_data = infection_score)

# 3. Construct single-sample niche containers
STID_obj_SS <- CreateSingleSampNiche(STID_obj, niche_key = "Niche", meta_key = "M2_NicheExpand_CE", ...)

# 4. Add extra niche-level annotations
STID_obj_SS <- AddSSNicheCells(STID_obj_SS, meta_key = "raw", select_colnm = "anno", niche_key = "Niche")

# 5. Combine samples for multi-sample analyses
STID_obj_MS <- CreateMultiSampNiche(STID_obj_SS, compare_mode = "Comparative", niche_key = "Niche", ...)

Notes

  • Confirm that samp_colnm, samp_grp_colnm, coordinate columns, and optional celltype_colnm exist before conversion.
  • Use consistent sample IDs and sample-group labels; CreateMultiSampNiche() relies on the sample order recorded in STID_info.
  • Keep row names synchronized when adding metadata. Added metadata tables should use the same cell or spot IDs as STID_obj@meta.data.
  • Use unique and descriptive meta_key, niche_key, and multi_id values. Existing keys may be overwritten by setter functions.
  • For ROI- or spot-based niches, verify that positive-label, center-label, edge-label, all-label, and distance columns are present before creating SingleSampNiche objects.
  • Prefer accessors and update functions over direct slot mutation in analysis notebooks.
  • Convert back to Seurat only when STID-specific containers are no longer needed.

Session information

sessionInfo()
#> R version 4.2.0 (2022-04-22 ucrt)
#> Platform: x86_64-w64-mingw32/x64 (64-bit)
#> Running under: Windows 10 x64 (build 22000)
#>
#> Matrix products: default
#>
#> locale:
#> [1] LC_COLLATE=Chinese (Simplified)_China.utf8
#> [2] LC_CTYPE=Chinese (Simplified)_China.utf8
#> [3] LC_MONETARY=Chinese (Simplified)_China.utf8
#> [4] LC_NUMERIC=C
#> [5] LC_TIME=Chinese (Simplified)_China.utf8
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> loaded via a namespace (and not attached):
#>  [1] digest_0.6.35     R6_2.6.1          jsonlite_1.8.8    lifecycle_1.0.5
#>  [5] evaluate_1.0.1    cachem_1.1.0      rlang_1.1.7       cli_3.6.5
#>  [9] rstudioapi_0.15.0 fs_1.6.3          jquerylib_0.1.4   bslib_0.8.0
#> [13] ragg_1.3.0        rmarkdown_2.29    pkgdown_2.2.0     textshaping_0.3.6
#> [17] desc_1.4.3        tools_4.2.0       htmlwidgets_1.6.4 yaml_2.3.10
#> [21] xfun_0.49         fastmap_1.2.0     compiler_4.2.0    systemfonts_1.0.4
#> [25] htmltools_0.5.8.1 knitr_1.49        sass_0.4.9
