Load and preprocess

Source: vignettes/02_load_and_preprocess.Rmd
02_load_and_preprocess.Rmd

Overview

This vignette describes how to load and preprocess spatial transcriptomics data before constructing an STID object for downstream spatial transcriptomic analysis of infectious diseases.

Preprocessing standardizes the input object so that the data are normalized, dimensionally reduced, clustered, and annotated in a format compatible with downstream STID modules.

This vignette covers:

  • loading an example Seurat object;
  • running a Seurat-based preprocessing workflow;
  • annotating spatial spots or cells with a reference-based method;
  • converting a processed Seurat object into an STID object.

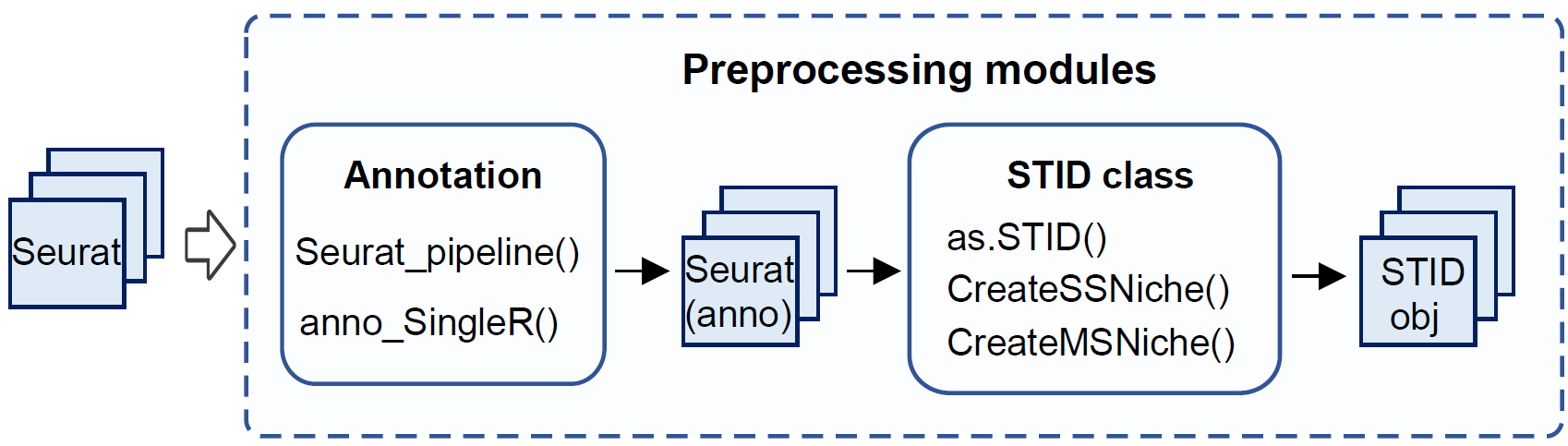

Preprocessing modules in the STID workflow.

Preprocessing modules in the STID workflow.

Note: Update the example dataset name, organism information, pathogen gene prefix, and metadata column names according to the dataset used in your analysis.

Reference code: For more runnable code examples, please refer to the article code.

Prerequisites

SingleR and celldex are only required for the optional reference-based annotation step.

Example data

The example data can be downloaded from Figshare. In this vignette, we use the stRNA_AE dataset as an example. Alveolar echinococcosis (AE) is a Stereo-seq-based mouse tissue dataset infected with Echinococcus multilocularis.

Note: Replace ./stRNA_AE.rds with the correct local path or a package-provided example dataset.

stRNA <- readRDS(file = "./stRNA_AE.rds")
stRNA <- suppressMessages(UpdateSeuratObject(stRNA))
# stRNA <- NormalizeData(stRNA)
meta_data <- stRNA@meta.data
table(meta_data$batch)

If the input Seurat object already contains reliable clustering results and cell-type annotations, you can skip the Seurat_pipeline() and anno_SingleR() sections and convert the object directly into an STID object.

Note: Confirm that the metadata column used for sample identity, such as batch, exists in stRNA@meta.data.

Seurat preprocessing pipeline

This step is optional. Skip it if the input Seurat object has already been normalized, dimensionally reduced, and clustered.

STID provides the wrapper function Seurat_pipeline() to streamline Seurat-based preprocessing, including normalization, feature selection, dimensionality reduction, and clustering.

stRNA <- Seurat_pipeline(
  seurat_obj = stRNA,
  data_type = "stRNA",
  resolution_index = seq(0.1, 1.3, 0.2),
  runTSNE_index = FALSE,
  assay_nm = NULL
)

Details

The preprocessing pipeline performs:

  • data normalization and scaling;
  • identification of highly variable features;
  • principal component analysis (PCA);
  • graph-based clustering across multiple resolutions.

The resolution_index argument controls clustering granularity. Adjust this parameter according to the expected spatial complexity and biological heterogeneity of the dataset.

Note: Update data_type, resolution_index, runTSNE_index, and assay_nm when applying this workflow to other platforms or assay structures.

Cell-type annotation using SingleR

This step is optional. Skip it if cell-type annotations are already available in the Seurat metadata.

Reference-based annotation can help interpret spatial spots or cells by mapping query profiles to a reference dataset with known cell-type labels.

# library(SingleR)
# library(celldex)

# ref <- celldex::MouseRNAseqData()

stRNA <- anno_SingleR(
  seurat_obj = stRNA,
  ref_obj = ref,
  seurat_colnm = "seurat_clusters",
  ref_colnm = "label.main"
)

The anno_SingleR() function annotates query spots or cells using the SingleR framework. The resulting annotations are stored in the Seurat object.

Note: Replace MouseRNAseqData() with a reference dataset that matches the species, tissue, and experimental context of the query data. Also confirm that seurat_colnm and ref_colnm exist in the corresponding objects.

Convert the Seurat object into an STID object

To support spatial transcriptomic analysis of infectious diseases, STID uses a dedicated object class that stores sample information, pathogen metadata, and platform-specific spatial information.

Before conversion, confirm the following information:

  • the sample identifier column;
  • the sample group column;
  • the cell-type annotation column;
  • the host organism;
  • the pathogen group and organism;
  • the pathogen gene list;
  • the spatial bin size, data format, and platform.
pathogen_genes <- grep("^EmuJ-", rownames(stRNA), value = TRUE)

STID_obj <- as.STID(
  stRNA,
  samp_colnm = "batch",
  samp_grp_colnm = "group",
  celltype_colnm = "anno",
  host_org = "mouse",
  pathogen_grp = "parasite",
  pathogen_org = "EmuJ",
  pathogen_genes = pathogen_genes,
  binsize = 50,
  data_format = "square_grid",
  data_platform = "StereoSeq"
)

print(STID_obj)

The as.STID() function converts a processed Seurat object into an STID object. The generated object is used as the standard input for downstream STID analyses.

Note: These assumptions are dataset-specific. Update samp_colnm, samp_grp_colnm, celltype_colnm, host_org, pathogen_grp, pathogen_org, pathogen_genes, binsize, data_format, and data_platform before using this workflow for another dataset.

Inspect the STID object

The following figure shows the structure of STID object.

STID class structure

STID class structure

The following figures show example views of the generated STID object.

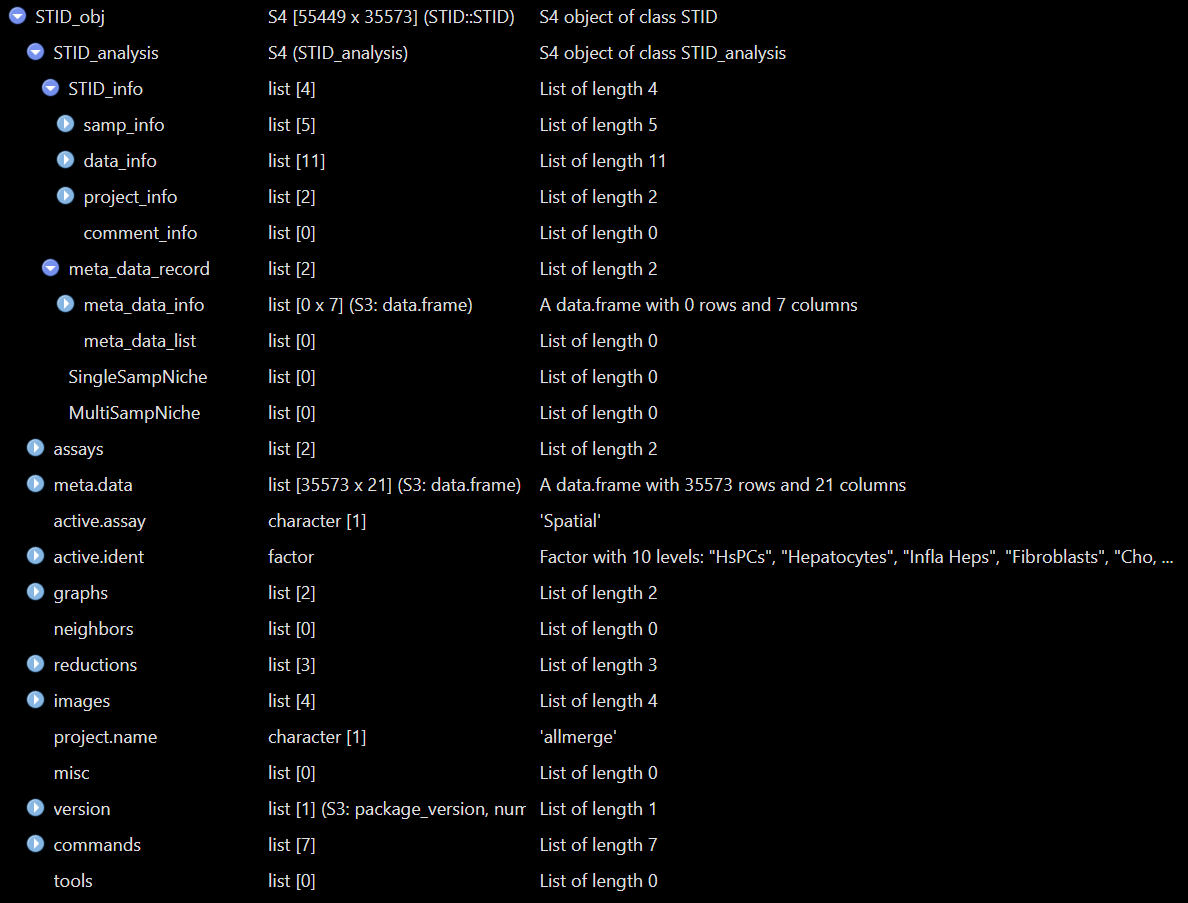

Example view of the raw STID object.

Example view of the raw STID object.

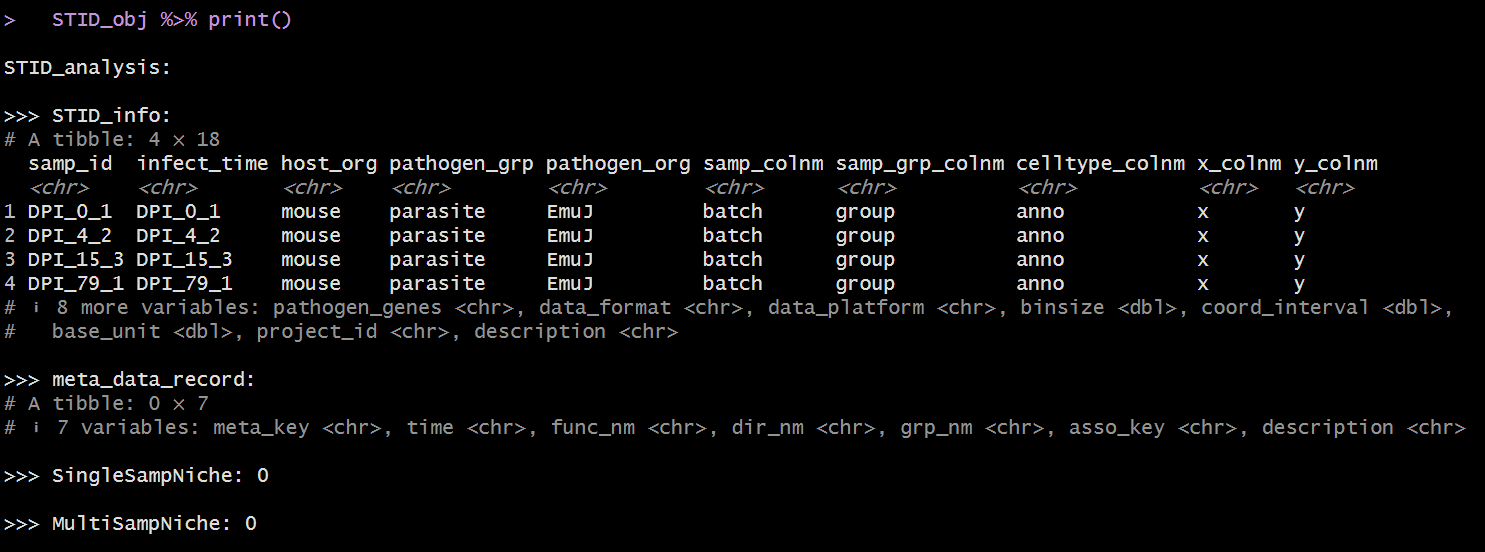

Printed summary of the raw STID object.

Printed summary of the raw STID object.

Notes

  • Verify that all metadata columns passed to as.STID() are present in stRNA@meta.data.
  • Check the pathogen gene prefix carefully, because an incorrect pattern may remove pathogen-derived features from downstream analysis.

Next steps

This vignette generated a processed STID object containing spatial coordinates, sample information, and host–pathogen metadata. In the next vignette, we will use this object to correct pathogen-derived background signals before detecting infection-associated spots.
